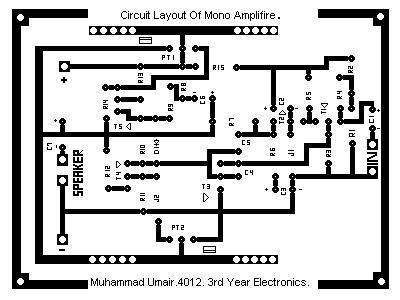

Mono Amplifire
This type of Amplifire is used in Car Tape & Mic....
Note:
If U see W,its mean ohm W
T1, T2 = A1015,
T3, T5 = C1383
T4 = A684 (A683)
Power T1, T2 = D313 or D1351
C1 = 2.2 uf or 1 uf (50 v),
C2, C3 = 47 uf, 25 v,
C4, C5 = 101 pf,
C6 = 10uf, 25v,
C7 = 1000 uf, 35-50 v,
R1 = 33 kW
R8, R9 = 3.3 kW
R2 = 10 kW
R3 = 1.5kW
R4, R7 = 22kW
R5 = 5.6 kW
R6, R10 = 220 W
R11, R14 = 680 W
R12, R13 = 15 W
R 15 = 10 kW
D1 = 1N 4007,
Power supply = DC 12 Volt.
Two Heat Sing
Note:
If U see W,its mean ohm W
Component List.
T1, T2 = A1015,
T3, T5 = C1383
T4 = A684 (A683)
Power T1, T2 = D313 or D1351
C1 = 2.2 uf or 1 uf (50 v),
C2, C3 = 47 uf, 25 v,
C4, C5 = 101 pf,
C6 = 10uf, 25v,
C7 = 1000 uf, 35-50 v,
R1 = 33 kW
R8, R9 = 3.3 kW
R2 = 10 kW
R3 = 1.5kW
R4, R7 = 22kW
R5 = 5.6 kW
R6, R10 = 220 W
R11, R14 = 680 W
R12, R13 = 15 W
R 15 = 10 kW
D1 = 1N 4007,
Power supply = DC 12 Volt.
Two Heat Sing
